NANTE hot selling HFP95 enclosed conductor rail/crane power rail
HFP95 enclosed conductor rail system is a powerail, protected from
housing, for indoor and outdoor plants. They are conductor lines in
a rigid green PVC housing with different copper cross sections for
rated current of 50A-100A.
| Model | Pole No. | Cross section | Max. current | Leakage-distance | Max. voltage | Resistance | Weight |
| HFP95-5-10/50 | 5 | 10 | 50 | 20 | 660 | 1.656 | 3.2 |
| HFP95-5-15/80 | 5 | 15 | 80 | 20 | 660 | 1.193 | 3.28 |
| HFP95-5-20/100 | 5 | 20 | 100 | 20 | 660 | 1.011 | 3.51 |
| HFP95-6-10/50 | 6 | 10 | 50 | 20 | 660 | 1.656 | 3.16 |
| HFP95-6-15/80 | 6 | 15 | 80 | 20 | 660 | 1.193 | 3.41 |
| HFP95-6-20/100 | 6 | 20 | 100 | 20 | 660 | 1.011 | 3.68 |
| HFP95-7-10/50 | 7 | 10 | 50 | 20 | 660 | 1.656 | 3.25 |
| HFP95-7-15/80 | 7 | 15 | 80 | 20 | 660 | 1.193 | 3.56 |
| HFP95-7-20/100 | 7 | 20 | 100 | 20 | 660 | 1.011 | 3.88 |
| HFP95-8-10/50 | 8 | 10 | 50 | 20 | 660 | 1.656 | 3.34 |
| HFP95-8-15/80 | 8 | 15 | 80 | 20 | 660 | 1.193 | 3.7 |
| HFP95-8-20/100 | 8 | 20 | 100 | 20 | 660 | 1.011 | 4.04 |
| HFP95-9-10/50 | 9 | 10 | 50 | 20 | 660 | 1.656 | 3.42 |
| HFP95-9-15/80 | 9 | 15 | 80 | 20 | 660 | 1.193 | 3.77 |
| HFP95-9-20/100 | 9 | 20 | 100 | 20 | 660 | 1.011 | 4.24 |
| HFP95-10-10/50 | 10 | 10 | 50 | 20 | 660 | 1.656 | 3.54 |
| HFP95-10-15/80 | 10 | 15 | 80 | 20 | 660 | 1.193 | 3.98 |
| HFP95-10-20/100 | 10 | 20 | 100 | 20 | 660 | 1.011 | 5.21 |
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.

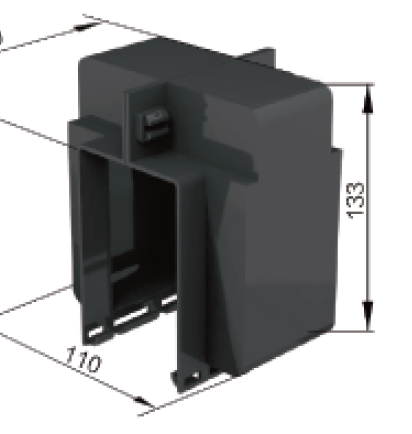

Couplings
Through PVC joint boxes
| Type | Weight(kg) | Materiall |
| 95JBX | 0.11 | Plastic |
.
Feed Sets
Line feeds or end feeds.
End caps
The open ends of the powerail are closed by end caps for HFP.
Hangers
Standard brackets for powerail attachment to crane girders are
available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor
installations:1200mm.

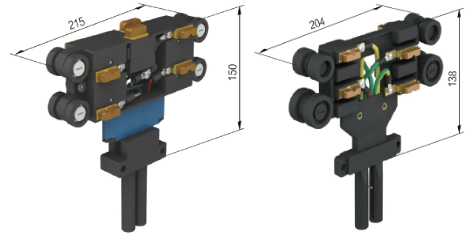

Current Collectors
25A current collector is used for conductor bar 50A
40A current collector is used for conductor bar 65A-100A
| Type | Weight(kg) | Poles | Power rating |
| 95JD-5/25 | 1.05 | 5 | 25A |
| 95JD-5/40 | 1.13 | 5 | 40A |
| 95JD-8/25 | 1.25 | 8 | 25A |
| 95JD-8/40 | 1.35 | 8 | 40A |
| 95JD-10/25 | 1.45 | 10 | 25A |
| 95JD-10/40 | 1.60 | 10 | 40A |
| Type | Weight(kg) | Poles | Power rating |
| 95JDR-5/25 | 0.85 | 5 | 25A |
| 95JDR-5/40 | 0.89 | 5 | 40A |
| 95JDR-6/25 | 0.94 | 6 | 25A |
| 95JDR-6/40 | 0.99 | 6 | 40A |
| 95JDR-8/25 | 1.22 | 8 | 25A |
| 95JDR-8/40 | 1.32 | 8 | 40A |
Type HFP-R: curves for R≥1500mm, with factory-mounted flat copper
band and screw connectors.
Approved and listed by: CCC, ISO 9001 and CE.
Application
The ranges of applications of HFP Power Rail Enclosed Conductor
System
1. Overhead and elongated tracks for cranes.
2. Electric hoists, electric tools, stacking systems.
3. Electric tools
4. Other applications for supplying power to moving power load.
Design features:
Compact arrangement, corrosion resistance and simple assembly are
its essential features.
