    Cable Trolley Cable Roller C Track Festoon System C32 Nante Series

    Ask Lasest Price
    Brand Name : Nante
    Model Number : C32
    Certification : CE,ISO
    Price : 3-20usd
    Supply Ability : 100000pcs/year
    Delivery Time : 7days within payment
    • Product Details
    • Company Profile

    Cable Trolley Cable Roller C Track Festoon System C32 Nante Series


    Factory Price Festoon System Cable Trolley Cable Roller C32 Nante Series


    Detailed Product Description

    C Track Festoon System for Crane, Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.


    Detailed Product Description

    Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

    The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.


    Application

    C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.


    Design features:

    Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation


    Technical Parameters

    23


    TypeC32*30*1.5C40*40*2.0C63*63*4.0C30*28*1.5
    MaterialGalvanized steel / Except C63
    Weight kg/m1.192.005.981.03
    Technical data
    A32406330
    B30406328
    C12131810
    61.52.04.01.5
    SpacingMax. Cable Load
    1.5m89kg188kg503kg70kg
    2.0m51kg103kg425kg36 kg
    2.5m39kg73kg302kg22kg
    3.0m23kg49kg195kg-
    4.0m-28kg85kg-

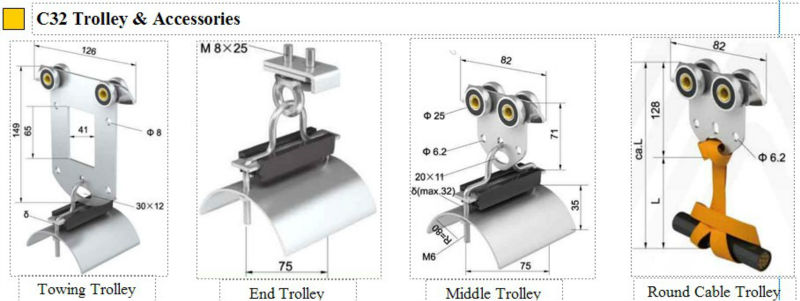

    C32


    TypeTowing TrolleyEnd TrolleyMiddle TrolleyRound Cable Trolley
    Wheels

    Ball bearings, hardened, galvanized

    Temperature resistance Lub. grease of wheels: -30°C to +125°C

    Max. travelling speed: 160m/min.

    Ball bearings, hardened, galvanized

    Temperature resistance Lub. grease of wheels: -30°C to +125°C

    Travelling speed: ca 120m/min.

    Material

    Carrier body: steel, galvanized
    Support saddle: steel, galvanized
    Bumper: neoprene
    Dowel: brass
    Hardware: galvanized

    Temperature: resistance: -30°C to +100°C(ABS Saddle 80°C)

    Carrier body: steel, galvanized
    Clamp: steel, galvanized
    Sling: nylon
    Dowel: brass
    Hardware: galvanized
    Max. cable loadMax. 25kg per carrierMax. 25kg per carrierMax. 30kg per carrierMax.22kg per carrier
    Dim. Of cable (mm)Max. 75w×32δMax. 75w×32δMax.75w×32δMax. D=50mm/D=80mm/D=160mm
    Weight (kg)0.610.390.4150.29
