Specifications

1. Crane& Hoist Steel Wire Cable Trolley Festoon System

2. Delivering power& control to mobile equipment

3. Safe, convenient

Detailed Product Description

Crane& Hoist Steel Wire Cable Trolley Festoon System , Galvanized Steel Conductor Rails With Brass Dowel, Rope and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

Steel wire trolley applied to light load mobile power supply device, easy to install, low cost.

Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method. This festoon system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Application

Steel Wire systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc, suitable for small cable loads.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

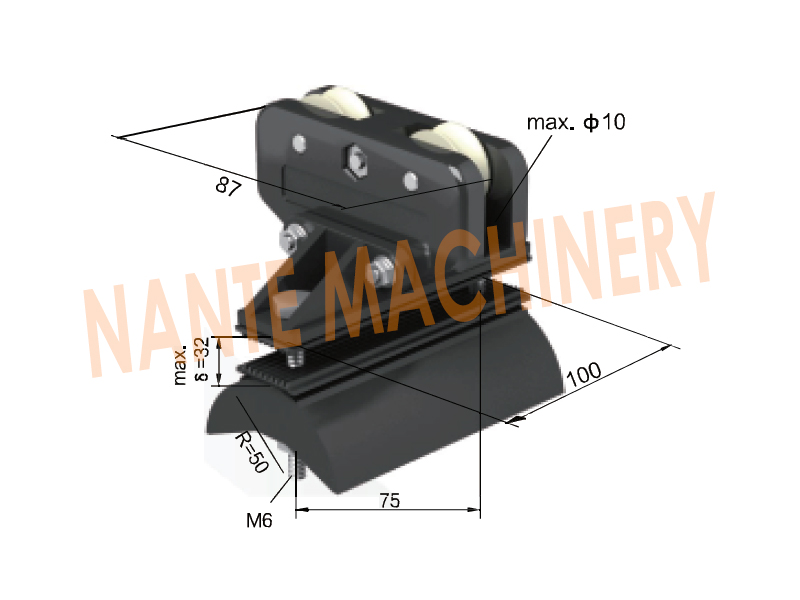

Technical Parameters

	Type	WFMT-70
	Wheels	Wheels: plastic Temperature resistance: -30°C to +80°C
		Travelling speed: ca. 120 m/min.
	Material	Carrier body: plastic Support saddle: plastic Bumper: Neoprene
		Hardware: galvanized Dowel: steel, galvanized ABS
		Temperature resistance: -30°C to +80°C
	Max. cable load	max.12KG
	Dim. of Cable (mm)	max.75 Wx50δ
	Weight(kg)	0.2
	Type	WFMT-70
	Wheels	Wheels: plastic Temperature resistance: -30°C to +80°C
	Material	Travelling speed: ca. 120 m/min.
		Carrier body: plastic Support saddle: plastic Bumper: Neoprene
		Hardware: galvanized Dowel: steel, galvanized ABS
		Temperature resistance: -30°C to +80°C
	Max. cable load	max.12KG
	Dim. of Cable (mm)	max.75 Wx50δ
	Weight(kg)	0.4

NANTE supply full line of beam trolley,

1. For Straight or Curver Beam
2. For IPN Beam or H Beam or I-Beam
3. For Normal Working Condition or Corrosivity
4. For Light or Heavy Duty Working
5. For One or Two or Three Foor Cables
