Application
Crane manufacturing, hoist units, transport systems, special
engineering, stacking systems, conveyor system, etc. C-rails are
available in zinc-coated and stainless steel version (program 230
to 240). Special versions are available for explosion-proof areas.
Design features:
Compact arrangement, elegant appearance.
Corrosion resistance
Simple assembly
Easy for transportation and installation
Product introduction

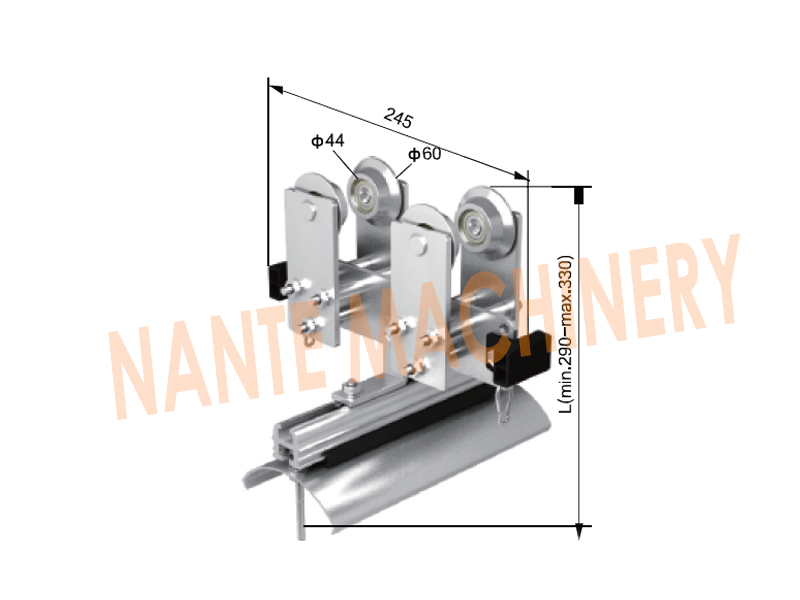

I-Beam Festoon System is used in hanging and moving for mobile
power supply mechanical cable. It has been widely used in all kinds
of hoisting machinery. The device is of firm structure, flexible
movement, safety and reliability. Light load type cable conduction
is made up by three parts including towing trolley, middle trolley
and end trolley. The towing trolley follows a moving mechanical
traction sheave guide rope traction device, each of which
configures 1 towing trolley to run back and forth with the mobile
machinery. Middle trolleys follow the towing trolley with the cable
hanging within the scope of I-beam rail traction, and the slow
clashes is equipped on both ends of them. The number of trolleys
depends on different length of mobile. End trolley is fixed at the
end of I-beam rail, general each mobile machinery set 1.
Technical Feature
| Wheels | Ball bearing |
| Max Travel Speed | 300m/min |
| Material | Galvanized Steel +ABS |
| Temperature | -30℃~+120℃ |
| Type | Max. cable load | Dia. Of Cable(mm) | Weight(kg) |
| N55MT-250 | Max.150kg/trolley | Max.120W*50σ | 4.35 |
| N55MT-300 | Max.200kg/trolley | Max.150W*50σ | 4.75 |
| N55MT-350 | Max.250kg/trolley | Max.250W*70σ | 5.15 |
| N35TT-120 | Max.60kg/trolley | Max.120W*50σ | 2.10 |
| N35TT-150 | Max.70kg/trolley | Max.150W*50σ | 2.30 |
| N35TT-250 | Max.150kg/trolley | Max.250W*70σ | 2.60 |
| N35TT-350 | Max.250kg/trolley | Max.300W*70σ | 3.00 |
| N35ET-120 | Max.60kg/trolley | Max.120W*50σ | 1.25 |
| N35ET-150 | Max.70kg/trolley | Max.150W*50σ | 1.45 |
| N35ET-250 | Max.150kg/trolley | Max.250W*70σ | 1.95 |
| N35ET-350 | Max.250kg/trolley | Max.300W*70σ | 2.35 |
Install Caution
1, Fixed line installed, should be hung behind a baffle.
2, Adjust the drawing head, make the car in the whole trip without
touching traction hole top and bottom edge as well.
3, Cable length for crane span 1.2 instead of 8 meters.
4, Adjust the traction rope, make its length is less than the
section with cable length, runtime by load cable force.
5, When the cable diameter range, should pad between cable clamp
with soft rubber, make its have the same diameter, so that the
cable clamp.
6, Cloth cable, both sides should consider cable plate stress
equilibrium.
7, When the cable pulley is on the second floor for the same.
8, The double gasket on the block device for adjusting washers,
when the guide rail is improper, put the washer on the inside of
the fixed plate, in order to adjust the track width, the factory
according to the guide for 100 * 68 120 70 140 * 80 * 70 *
140.Non-standard block processing system according to the drawing.
