3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

    Buy cheap 3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed from wholesalers

    Buy cheap 3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed from wholesalers
    • Buy cheap 3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed from wholesalers
    • Buy cheap 3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed from wholesalers

    3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

    Ask Lasest Price
    Brand Name : NANTE
    Model Number : ASF
    Certification : Certification
    Supply Ability : 1000000 pcs per year
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

    Application

    Angle systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. Angle steel are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.


    Design features:

    Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

    Detailed Product Description

    Angle Steel Trolley festoon system, Galvanized Steel Angle and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

    Angle steel trolley applied to light mobile power supply device, with a quick isntallation, low cost, long life, stable operation and other characteristics.

    The angle steel system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

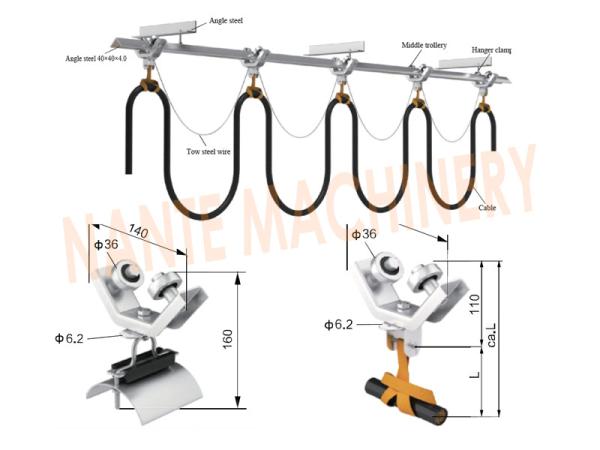

    Technical Parameters

    Angle Steel


    Trolleys for flat cable


    TypeASF-40(flat cable)
    WheelsBall bearings, hardened, galvanized
    Temperature resistance Lub. grease of wheels: -30°C-- +100°C
    Travelling speed: ca. 160 m/min.
    MaterialCarrier body: steel, galvanized
    Support saddle: steel, galvanized
    Bumper: Neoprene
    Dowel:steel, galvanized
    Hardware: galvanized
    Max. cable loadmax.30KG
    Dim. of Cable (mm)max.75 Wx32δ
    Weight(kg)0.67

    Trolleys for round cable


    TypeASR-40(round cable)
    WheelsBall bearings, hardened, galvanized
    Temperature resistance Lub. grease of wheels: -30°C-- +100°C
    Travelling speed: ca. 160 m/min.
    MaterialCarrier body: steel, galvanized
    Clamp : steel, galvanized
    Sling: Nylon
    Dowel: Brass or steel, galvanized
    Max. cable load30KG/max. 30 KG per carrier
    Dim. of Cable (mm)max.D=dia.50mm/D=dia.80mm/D=dia.160mm
    Weight(kg)0.48

    Quality 3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed for sale
