Green Copper Conductor Rail Mobile Electrification For Electric Tools

Conductor Rail Mobile Electrification For Electric Tool

Detailed Product Description

Conductor rails power line system are available with any desired number of poles and in any desired length, and they are designed for simple, easy installation. Rails feature robust construction and are suitable for use in harsh industrial environments. Heavy-duty connective elements guarantee reliable transmission without interruption for problem-free operation.

Quick Details

Standard length; 4m or 6m.
Current: 35A~240A
Conductor material: copper
Support spacing: 1.2m

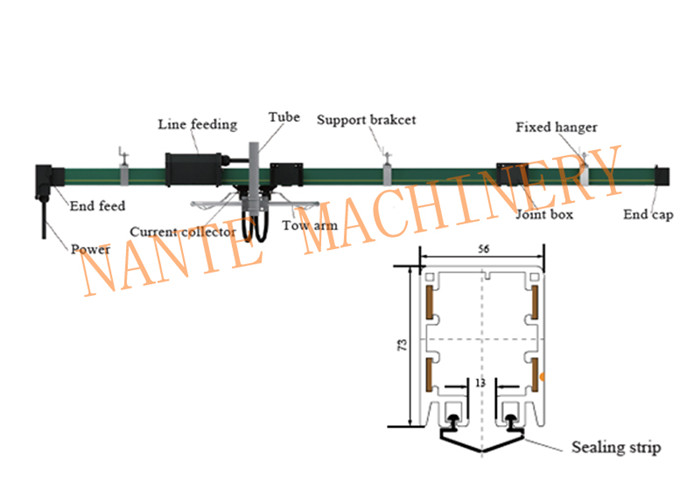

Design features

Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Hangers

Standard brackets for powerail attachment to crane girders are available.

Powerail with sliding and fixpoint hangers.

Standard distance between suspension points for indoor and outdoor installations:1200mm.

Feed Sets

Line feeds or end feeds.

Couplings

Through PVC joint caps.

End caps

The open ends of the powerail are closed by end caps for HFP.

Conductor Rail Mobile Electrification

Technical Parameters

Model	Pole No.	Cross section	Max. current	Leakage-distance	Max. voltage	Resistance	Dimensions (H * W)	Weight
HFP56-4-8/35	4	8	35	35	600	1.944	73*56	2.09
HFP56-4-10/50	4	10	50	35	600	1.656	73*56	2.16
HFP56-4-12/65	4	12	65	35	600	1.321	73*56	2.23
HFP56-4-15/80	4	15	80	35	600	1.137	73*56	2.3
HFP56-4-20/100	4	20	100	33	600	1.011	73*56	2.43
HFP56-4-25/120	4	25	120	33	600	0.713	73*56	2.56
HFP56-4-35/140	4	35	140	33	600	0.522	73*56	2.95
HFP56-4-50/170	4	50	170	33	600	0.337	73*56	3.25
HFP56-4-70/210	4	70	210	33	600	0.265	73*56	3.85
HFP56-4-80/240	4	80	240	30	600	0.223	73*56	4.16
HFP56-3-10/50	3	10	50	45	600	1.656	73*56	1.95
HFP56-3-15/80	3	15	80	45	600	1.137	73*56	2.13
HFP56-3-20/100	3	20	100	45	600	1.011	73*56	2.24
HFP56-3-25/120	3	25	120	45	600	0.713	73*56	2.37
HFP56-3-35/140	3	35	140	45	600	0.522	73*56	2.63
HFP56-3-50/170	3	50	170	45	600	0.337	73*56	3.02

HFP Series Multiple-Poles Conductor Rail System
Max. voltage	600v	Bending strength	75N/mm²±10%
Dielectric strength	30-40kv/mm	Tensile strength	40N/mm²±10%
Special resistance	5×10¹⁵ Ohm×cm	Leakage resistance	CTI600-2,7
Surface resistance	10¹³ Ohm×cm	Design and Manufacturing Standard	GB7251.2-2006
Distance between each suspension bracket (m)	1.2	Rail length per piece (m)	4
Flame retardant	Class B1-no flaming particles, self-extinguishing
Permissible Ambient temperature	Standard insulation -30℃- +70℃\|High temperature insulation -20℃- +115℃\|Low temperature insulation -40℃- +80℃
