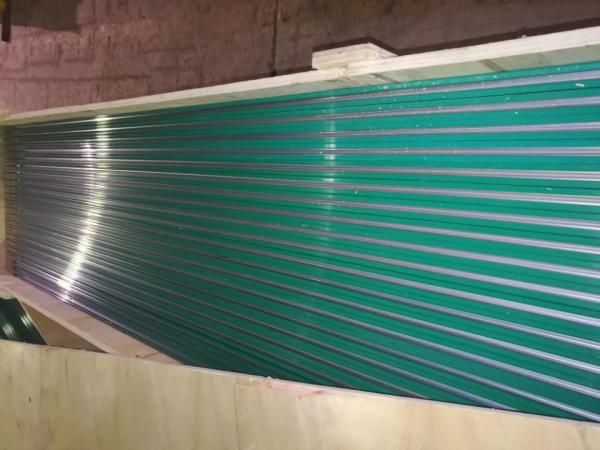

NSP-H24 Conductor Rail With All Accessories 230/800A Copper/Aluminium Material

Technical Data

Overview
Flexible slip line is made of unipolar, multi-pole assembly. Suitable for intensive installation, such as electric monorail car automatic production line, play line and so on. It has the following main features:
1. Intensive combination: Pole spacing is small, any combination. The maximum number of units currently applied is 36.
2. Convenient laying: The overall assembly, laying flexible, can be suspended installation, attached to the wall installation, the level of installation, vertical installation or on-demand equipment.
3. Flex flexible: Bending radius up to R500mm, and any bending with the track, without deliberately made arc.

Specifications
Insulated Conductors System NSP-H/ Unipole Conductor Rail System /Track Configuration: straight curve elements available.
Single pole insulated conductor rails offers a large selection for different applications and number of poles.

Standard application data:
Max.current(A): 250-300-500-600-700-800
Conductor cross section(mm²⁾:160-180-200-230
Leakage-distance(mm): 45 or 80
Resistance(Ω/km):0.203-0.187-0.112-0.098-0.087-0.076

Mechanical properties:
Flexible strength:75N/mm²±10%
Tensile strength:40N/mm²±10%

Temperature range:
Common Housing: -20^oC up to +70^oC
BAYBLEND Housing: -10^oC up to +115^oC

Combustibility:
Flame retardant
Self-extinguishing: class B 1-no flaming paricles,self-extinguishing.

Standard application data
Operating Conditions: for indoor and weather protected outdoor applications

Aluminium Conductor Rail

Copper Conductor Rail
