Enclosed Conductor Rail HFP Series Busbar Overhead Crane Parts PVC Housing

Enclosed Conductor Rail HFP Series Busbar for Overhead Crane

Specifications of HFP56 Enclosed Conductor Rail:

Electrical properties:		Mechanical properties:
Max.current	240A	Flexible strength	75N/mm ± 10%
Max.voltage	660V	Tensile strength	40N/mm ± 10%
Dielectric strength	30-40KV/mm	Temperature range:
Spec.resistance	5 × 10¹⁵ Ohm × cm	Standard Housing	-20℃up to +70℃
Surface resistivity	10¹³ Ohm × cm	High Temp.Housing	-10℃up to +115℃
Leakage resistance	CTI600-2.7
Combustibility:
Flame retardant	B1 Class
Self extinguishing	Class B1 - no flaming particles, self-extinguishing

NANTE hot selling HFP56 enclosed conductor rail/crane power rail

HFP56 enclosed conductor rail system is a powerail, protected from housing, for indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated current of 35A-240A.

Wampfler Boxline 0842, Conductor Rail, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS

Specifications

Wampfler Boxline 0842 type,

Powerail Enclosed conductor rails typically copper strips
CCC, ISO, CE

Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

Overhead and elongated tracks for cranes.
Electric hoists, electric tools, stacking systems.
Electric toolsmoving power load.
Other applications for supplying power to

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features.

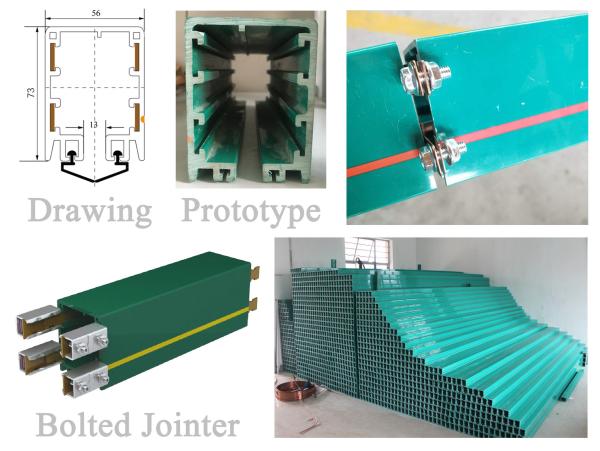

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Specification

Model	Pole No.	Cross section (mm² )	Max. current (A)	Leakage-distance (mm)	Max. voltage (V)	Resistance (Ω)	Weight (kg)
HFP56-4-8/35	4	8	35	35	600	1.944	2.09
HFP56-4-10/50	4	10	50	35	600	1.656	2.16
HFP56-4-12/65	4	12	65	35	600	1.321	2.23
HFP56-4-15/80	4	15	80	35	600	1.137	2.3
HFP56-4-20/100	4	20	100	33	600	1.011	2.43
HFP56-4-25/120	4	25	120	33	600	0.713	2.56
HFP56-4-35/140	4	35	140	33	600	0.522	2.95
HFP56-4-50/170	4	50	170	33	600	0.337	3.25
HFP56-4-70/210	4	70	210	33	600	0.265	3.85
HFP56-4-80/240	4	80	240	30	600	0.223	4.16
