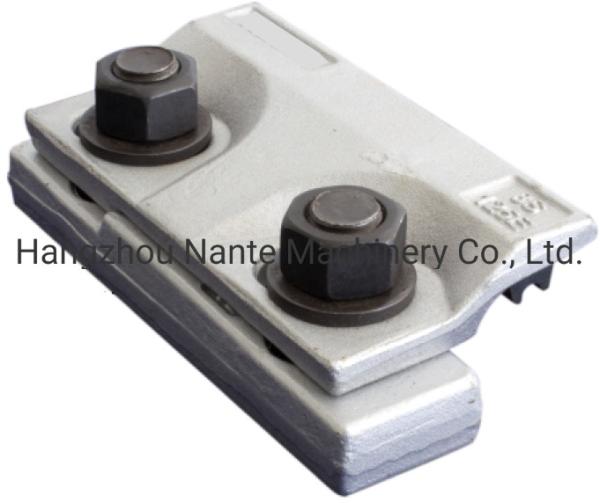

Railway Track Clips Heavy Duty Steel Crane Rail Clamp Model Rail

Specifications

Double wedge design
Bolts incorporate a "Square Shank Base"
Crane rail clamp

The features and functions of welding type rail clamp
1, The floor of rail claping system uses three sides welding or two sides welding to the steel crane beam, can guarantee the crane horizontal force balance evenly delivered to the crane beam. The use of welded rail clamp avoids the defects of openings in the crane beam wing defects. Effectively improve the crane beam interface strength and carrying capacity.
2, the base plate fastened with T-bolt by ball hinge connection. Therefore, under the action of lateral force, the T-bolt is vertical to the upper cover and allows deflection, reducing the crane horizontal impact to the rail, crane beam and braking system and other structural hazards. Thus extending the service life of the structure.
3, the rail clamp is equipped with a slant adjustment plate, used to adjust the gauge, can improve the installation accuracy, reducing the center line straightness difference. And a two-way self-locking function to prevent the phenomenon of loosening during use.
4, T rail bolt is easy to remove, providing a very convenient condition for installation and maintenance .
5, The rail clamp upper plate matches the rail, can clamps the rail tightly without affecting the track micro-slipping along the vertical direction. It can also be used for full-track welding.

Welding type rail clamp fastenings selection and layout
1, according to the process of the proposed rail model, use the appropriate rail fixtures.
2, the spacing of rail clamp fastenings to be determined by crane initial weight
3, the baseplate to be welded with crane beam, electrode type selection should be compatible with the joint material. For example
4, intermediate working system Crane beam using two sides weld, heavy (special heavy) work inverted crane using three sides weld.

Rail Clamp for crane rail

NANTE:

After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane and crane components in China.  Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, WE can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost.  We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.

OUR PRODUCTS:

In order to offer our clients with a complete set of competitive lifting solution. WE delivers a wide range of products include:

1. Lifting Equipments for Construction: Beam Launcher, Gantry Crane, Segment Lifter, Form Traveler, and Bailey Bridge etc.

2. Lifting Equipments for Industry: Overhead Crane, Gantry Crane, Jib Crane, Light Crane System.

3. Crane Components: Electric Hoist & Trolley, End carriage, Conductor Rail, Festoon system, Steel Rail, Flat cable, Pendent control, geared motor, remote control etc.

Our Service

WE can provide to customer an integrated solution which includes project consultant, design, manufacturing, transportation, installation, maintenance and technical support. Our one-stop services can not only save our customers time but also minimize their cost.

In compliance with our service concept “Customer First”, we provide the following support services to ensure smooth running of customer’s lifting and handling equipments: Presale Technical Support, After-sale Maintenance, Spare Parts Support, and Customized Solutions.
