Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min

    Buy cheap Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min from wholesalers

    Buy cheap Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min from wholesalers
    • Buy cheap Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min from wholesalers

    Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min

    Ask Lasest Price
    Brand Name : Nante
    Model Number : C32-70
    Certification : CE,ISO
    Price : 5-10USD/PC
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 5-8 WORKING DAYS
    • Product Details
    • Company Profile

    Ball Bearing Cable Trolley Wire Rope Roller For Festoon System Max.Speed 120m/min

    Detailed Product Description of C32 Festoon System / Cable Trolley


    Festoon Cable Trolley C32, Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.


    Detailed Product Description

    Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

    The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.


    Application

    C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.


    Design features:

    Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation


    Picture for details:


    ​ C32TT-70-Towing Trolley

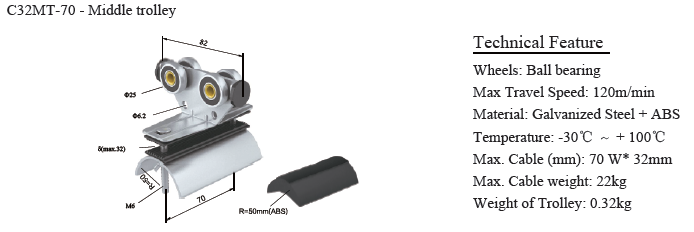

    ​ C32MT-70-Middle Trolley

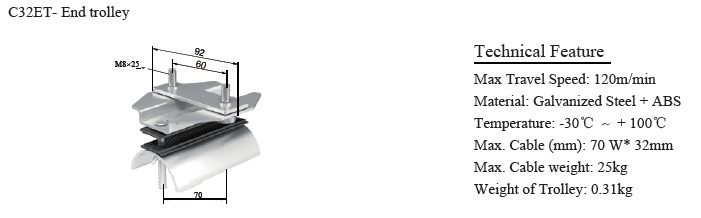

    ​ C32ET-End Trolley


    ​Festoon System Data:


    TypeC32*30*1.5C40*40*2.0C63*63*4.0C30*28*1.5
    MaterialGalvanized steel / Except C63
    Weight kg/m1.192.005.981.03
    Technical data
    A32406330
    B30406328
    C12131810
    61.52.04.01.5
    SpacingMax. Cable Load
    1.5m89kg188kg503kg70kg
    2.0m51kg103kg425kg36 kg
    2.5m39kg73kg302kg22kg
    3.0m23kg49kg195kg-
    4.0m-28kg85kg-
