Working principle:
For example, the FCR006 limit switch is used to control the
distance of the workbench on the crane, usually in the following
order: When the crane moves forward to the limit distance, the
ECR006 is activated to cause the motor speed to drop until the
operation is completely stopped and the conversion Commutation
circuit. The motor will move in the opposite direction (rear).

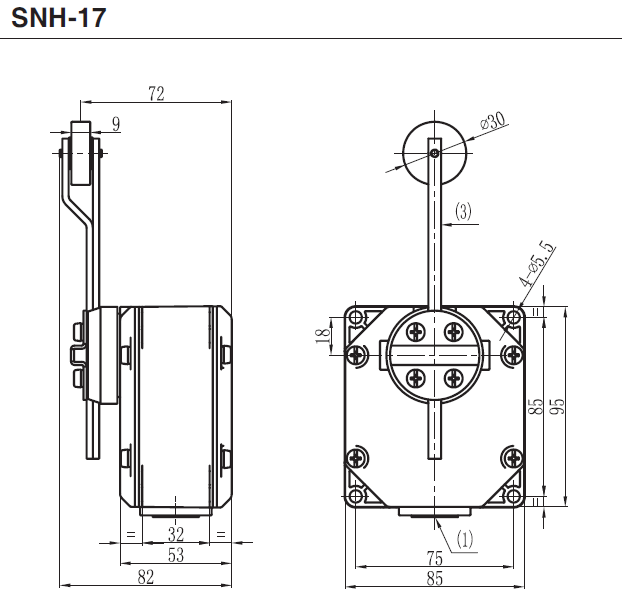

| Characteristic: |
| Rated voltage | Max. 690V |
| Rated current | 16A |
| Protection class | IP65 |
| Temperature range | -25 ~ +70 (℃) |
| Life | 5 million (times) |
Other technical indicates
| Maximum trigger speed | 1.5m/s |
| Mechanical life | 10 million times |
| Minimum action force | Switch trigger | 0.45N.m |
| Forced out of work | 0.75N.m |
Application:
Position (rotation angle) limited switch is mainly used in the
following control occasions:
- Complex crane system: operating system for controlling power
supply (eg PLC), allowing crane to slow down and stop running
- Lift (hoist): Used to stop the motor when it is run to its
extreme position
All combinations are used with standard systems
Can be customized according to customer requirements
Principle
Limit switch is a commonly used small current master electrical
appliances. The use of the production of mechanical moving parts of
the collision to make its contact to achieve the opening or
breaking control circuit, to achieve a certain control purposes.
Typically, such switches are used to limit the position or stroke
of mechanical movement, so that the movement of machinery according
to a certain position or stroke automatically stop, reverse
movement, variable speed movement or automatic round-trip movement.
In the electrical control system, the limit switch is to achieve
the role of sequential control, positioning control and position of
the state detection. Used to control the travel and limit
protection of machinery and equipment. Construction: consists of an
operating head, a contact system and a housing.
In the actual production, the limit switch is installed in the
pre-arranged position, when installed in the production of
mechanical moving parts of the module hit the trip switch, the
limit switch contact action to achieve the circuit switch.
Therefore, the trip switch is a movement of the parts according to
the location of the switch circuit of electrical appliances, and
its role is similar to the principle of the button.
Limit switches are widely used in various types of machine tools
and lifting machinery, to control its travel, the terminal limit
protection. In the elevator control circuit, but also the use of
travel switch to control the speed of the car door, automatic door
opening limit, car upper and lower limit protection.
The limit switch can be mounted on objects that are relatively
stationary (such as fixed frames, door frames, etc.) or moving
objects (such as traffic, doors, etc.). When the animal is close to
still life, the contact of the switch's drive switch causes the
closed contact to break or break the contact closed. By the switch
contact opening and closing state changes to control the circuit
and the action of the body.
