320A To 500A High Power Conductor Rails System

Detailed Product Description

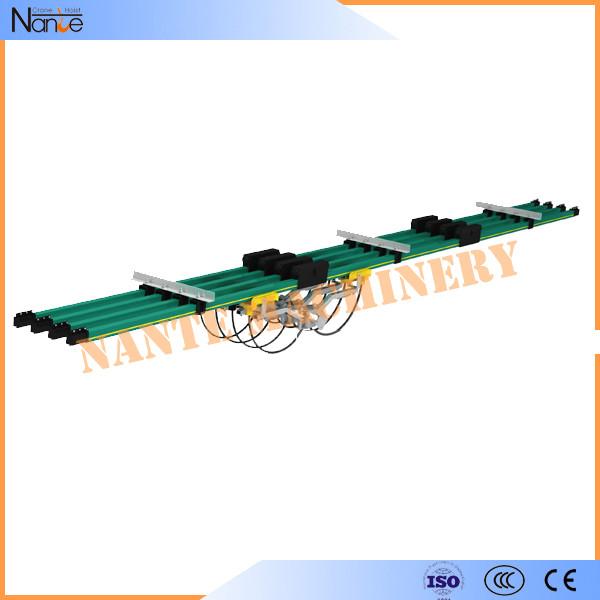

The JDC-H conductor rail system is a modern crane power supply system using single pole insulated conductor bars. It complies with the latest regulations and provides the electric energy for material handling equipments such as overhead cranes.
The aluminum shrouded busbar mobile electrification system is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.

• Standard length; 4m or 6m.
• Current: 100A~1250A
• Conductor material: Aluminium, copper
• Support spacing: 1.8m or 2.0m

Design features

1. Compact arrangement,
2. High safety insulation housing, corrosion resistance.
3. Easy and exact mounting with multiple supporting bracket.
4. Easy installation.

Housing
The well insulating green plastic housing holds 3-6 conductors. Usually 4m standard length and other length to meet your runway requirements are available. The ground line is identified by the yellow color so that avoiding phase reversing.

Collectors
The current collectors are made of carbon brush, re-inforced nylon and galvanized or spray-paint metal material. Spring loaded carbon brushes maintain uniform contact. Connecting cables and hinged or flexible towing arms included. Double Current collectors for transfer applications and higher amperage are available.

320A To 500A Conductor Rails

Aluminium Conductor

Copper Conductor

NANTE:

After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane and crane components in China.  Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, WE can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost.  We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.

OUR PRODUCTS:

In order to offer our clients with a complete set of competitive lifting solution. WE delivers a wide range of products include:

1. Lifting Equipments for Construction: Beam Launcher, Gantry Crane, Segment Lifter, Form Traveler, and Bailey Bridge etc.

2. Lifting Equipments for Industry: Overhead Crane, Gantry Crane, Jib Crane, Light Crane System.

3. Crane Components: Electric Hoist & Trolley, End carriage, Conductor Rail, Festoon system, Steel Rail, Flat cable, Pendent control, geared motor, remote control etc.

Our Service

WE can provide to customer an integrated solution which includes project consultant, design, manufacturing, transportation, installation, maintenance and technical support. Our one-stop services can not only save our customers time but also minimize their cost.

In compliance with our service concept “Customer First”, we provide the following support services to ensure smooth running of customer’s lifting and handling equipments: Presale Technical Support, After-sale Maintenance, Spare Parts Support, and Customized Solutions.
