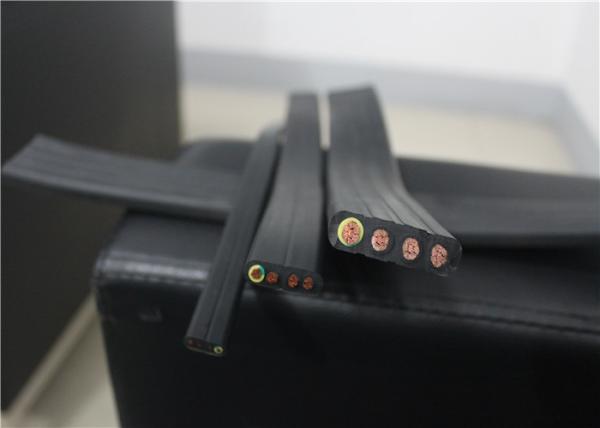

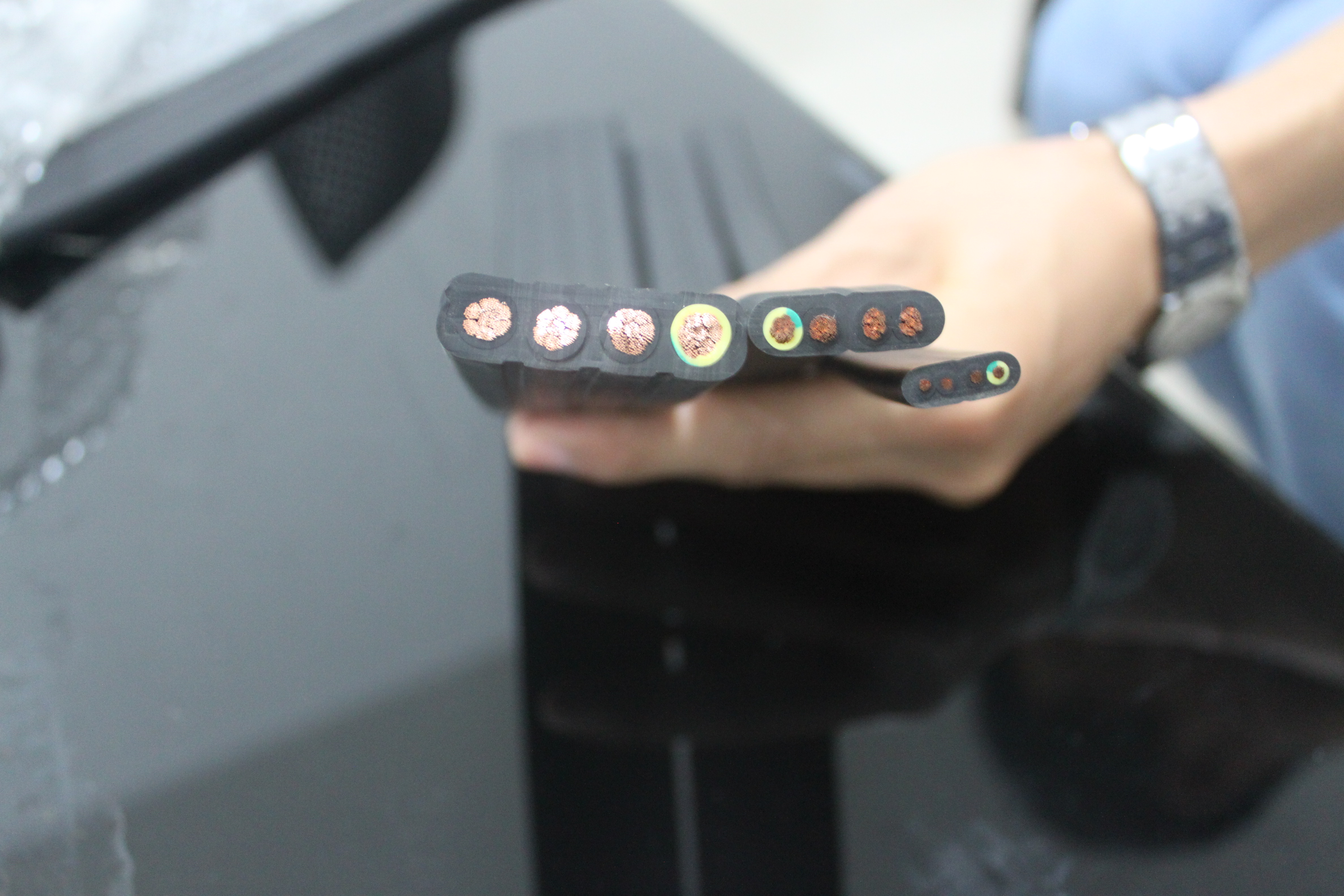

    Multicore Overhead Crane Spare Parts Rubber Sheath Flexible Flat Cable

    Ask Lasest Price
    Brand Name : NANTE
    Model Number : YFFB-4
    Certification : ISO
    Price : 2-20usd
    Supply Ability : 1000pc/day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Multicore Overhead Crane Spare Parts Rubber Sheath Flexible Flat Cable


    Multicore Overhead Crane Spare Parts Rubber Sheath Flexible Flat Cable


    Description:


    450/750V , 600/1000V Submersible pump rubber inulated flat Power Supply Cables

    Tough & Flexible submersible pump cables specially designed to supply power to submersible borehole pumps in a deep borewell.


    Loaded with exclusive features of Safety, Power Savings and Long-term Reliability, they are the best performing submersible pump cables on the market today. Tested for toughness and performance, the insulation & jacket will stand up to even the most aggressive wet conditions. Our finely stranded copper conductor has better flexibility and strength for easier handling & installation.


    Applications :


    Irrigations, Drinking Water Supply,Mine Dewatering,Industries,Swimming Pools,Fountains,Offshore Drilling Rigs,Sewage Treatment Plants,Sea Water Filtration Plants,Aquariums


    PVC 3 & 4 Core Flat Submersible Pump Cable


    Construction

    • Conductor
      High purity electrolytic grade bright annealed flexible bunched bare,
      copper conductor according to international standards like BS 6360, IEC 228 & VDE 0295.
    • Insulation
      Rubber or Specially developed dielectric grade PVC Compound impervious to
      water, oils, grease etc.
    • Sheath Flexibel Inner Sheath & High abrasion resistant tough & flexible rubber or PVC Compound.

    Features :

    • Tough & flexible cable with excellent moisture, abrasion & weather resistance.
    • Safe, Reliable and power saving.
    • Excellent Wet Electrical Properties.
    • 1 core , 3 core , 4 cores Flat & Round cables with PVC & Rubber Insulation & Jacket
    • Available in SQ MM sizes (European style) 1 sq mm to 240 sq mm and AWG sizes (North American style) 14 AWG to 500 MCM.
    • With sequential Meter / Foot marking.
    • Various voltage rating for different markets: 450 / 750 V, 600 V, 650/1100 V, 600/1000 V, 3000 V.
    • Conforming to International Standards IS 694, BS 6500, IEC 60227, DIN VDE 0281, VDE 0282, BS 6007, UL 83, SABS 1574, AS 3191, AS/NZS 5000.1.
    • Available in wide temperature range: -50°C to 105°C.
    • Available with ROHS PVC for drinking water pump.

    Flat Cable Submersible Pump Cable


    3/ 4CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)
    CONDUCTORRUBBER INSULATIONRUBBER SHEATHConductor Resistance at 20°C (max) ohms/kmCURRENT
    NominalNos. & Dia.NominalNominalNominalApprox. OverallRating at 40°C
    Area inof wireThicknessCore Dia.ThicknessDimensionsAmps.
    Sq. mm.Nos. / mmmmmmmmThicknessWidth
    mmmm
    1.522/0.300.83.251.3615.812.114
    2.536/0.300.93.841.36.5187.4118
    456/0.3014.51.457.6214.9526
    685/0.3015.31.57.924.33.331
    10140/0.3016.51.89.929.71.9142
    16226/0.30181.9511.8361.2157
    25354/0.301.210.1214.745.10.7872
    35495/0.301.211.5216.250.10.55490
    50703/0.301.413.62.218.358.10.386115
    70440/0.451.415.32.22066.50.272143
    95475/0.501.6182.423.577.30.206165
