    CE / CCC High Tro Reel 4 Pole Seamless Copper Conductor Rail For Crane

    Ask Lasest Price
    Brand Name : NANTE
    Model Number : HTR
    Certification : ISO9001, CE, CCC
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1000000 meters per day
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

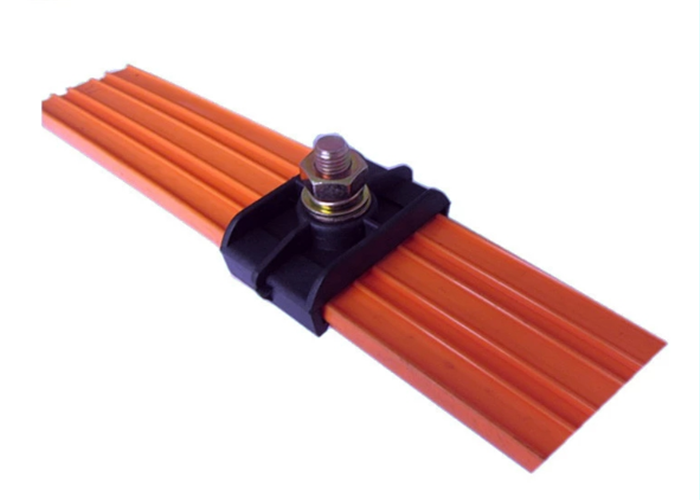

    CE / CCC High Tro Reel 4 Pole Seamless Copper Conductor Rail For Crane


    CE / CCC High Tro Reel 4 Pole Seamless Copper Conductor Rail For Crane


    Detailed Product Description

    Rated Value:4P, 600V, 50~140AConductor Material:Copper
    Flexible Strength:75N/mm2±10%Tensile Strength:40N/mm2±10%

    Overhead Crane Conductor Bar High Tro Reel System, 50-140A 600V 4 Phase Outdoor Rails


    PVC Seamless Conductor System, Flexible Monorail Feeding System, Seamless Power Rail, High Tro Reel System, Power Rail System


    Detailed Product Description


    Low-Power Insulated Tro reel system are used widely for workshops, ring application or slip rings, stacking system and other industrial applications.


    Mechanical properties:


    1. Flexible strength:75N/mm2±10%
    2. Tensile strength:40N/mm2±10%
    3. Temperature range:
    4. Common Housing: -30oC up to +60oC
    5. BAYBLEND Housing: -20oC up to +115oC
    6. Combustibility:
    7. Flame retardant
    8. Self extinguishing:class B 1-no flaming paricles,self-extinguishing.
    9. Resistance to chemicals:+45oC
    10. Gasoline:Sulphuric acid 50%
    11. Mineral Oil:Caustic soda 25% & 50%
    12. Grease:Hydro-chloric acid,concentrated.

    Application


    1. Small power line feeding system.
    2. Overhead and elongated tracks for cranes.
    3. Electric hoists, electric tools, stacking systems.
    4. Electric tools
    5. Other applications for supplying power to moving power load.



    Technical Parameters


    Type

    Poles

    Conductor Cross Section(mm²)

    Max. Current(A)

    Order-NO.

    HTR1004

    4

    3×10+1×0.9

    50A

    761004

    HTR1504

    4

    3×15+1×1.0

    80A

    761504

    HTR2004

    4

    3×20+1×1.0

    100A

    762004

    HTR2504

    4

    3×25+1×1.2

    120A

    725004

    HTR3504

    4

    3×35+1×1.5

    140A

    763504

    HTR1003

    3

    3×10

    50A

    761003

    HTR1503

    3

    3×15

    80A

    761503

    HTR2003

    3

    3×20

    100A

    762003

    HTR2503

    3

    3×25

    120A

    725003

    HTR3503

    3

    3×35

    140A

    763503
